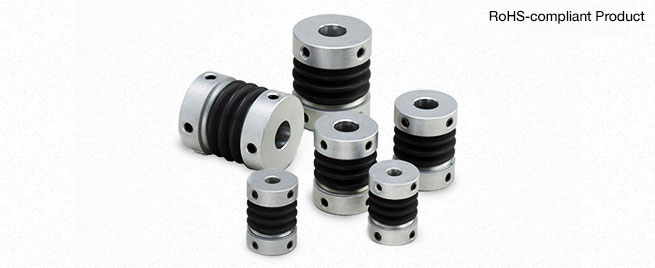

BELLOWFLEX

Plastic boots absorb vibration and have extremely small counter force from mounting misalignment

These couplings absorb vibration and have extremely low reaction force from mounting misalignment, thanks to the use of a plastic boot made of resin with excellent elastic properties (polyester resins). They are compact and lightweight, since the aluminum alloy hub and boot are designed with a unitized construction. Thanks to the unitized construction, they are easy to mount and remove, and there is no backlash. They come in three sizes, and all are highly flexible couplings that allow eccentricity of 0.5 mm and an angle of deflection of 10°.

Application
Financial terminals/Inspection equipment/Printing machines

CHP Models

These couplings absorb vibration and have extremely low reaction force from mounting misalignment, thanks to the use of a plastic boot made of resin with excellent elastic properties (polyester resins). They are compact and lightweight, since the aluminum alloy hub and boot are designed with a unitized construction.Thanks to the unitized construction, they are easy to mount and remove, and there is no backlash.

基本スペック

  • Max. nominal torque

    1.5 N・m

  • Bore ranges

    3 mm to 18 mm

  • Backlash

    Zero
